Recessed square spotlight - 157 x 80mm

Qubic S 2 Trimless

Name: Qubic S 2 Trimless
SKU: 4816.ΔΔΔ.24.Δ
Availability: InStock

Color

Inside Color

Clear

Article number: 4816.ΔΔΔ.24.Δ Category: Recessed Square Product family: Qubic

Lightsource	Bridgelux BXRV, Cree 1306
Color	White, Anthracite, Black, Anodic Brown
Inside Color	White, Anthracite, Black, Anodic Brown
Beam Angle	15°, 24°, 36°, 50°
Dim options	DALI, Phase Cut
Lumen	2 x 837lm, 2 x 877lm, 2 x 688lm
Wattage	2 x 7,3W, 2 x 6,5W
Color Temperature	1800 – 3000K (Dim to Warm), 2700K, 3000K
CRI	>90
IP	IP20
Accessories	Honeycomb

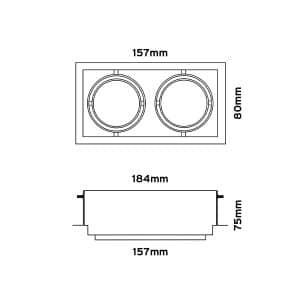

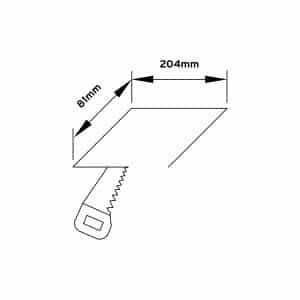

Keylight Qubic S 2 Trimless technical drawing Keylight Qubic S 2 Trimless hole size

Specifications
